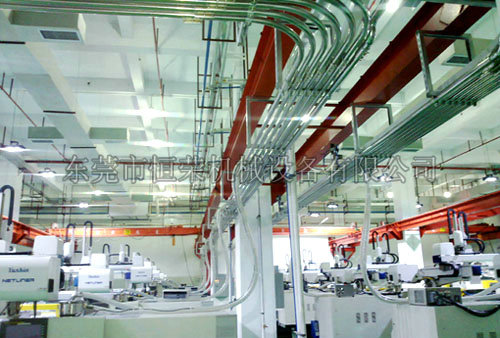

With the rapid development of science and technology, plastic raw materials processing industry has created a broader space for development. Therefore, improving supply efficiency and reducing various consumption are important factors that determine the development of enterprises. Hengrong set many years of experience and technological innovation in one, has introduced a compact, reliable operation, high quality, easy maintenance and many other advantages of automatic feeding system equipment. Xiaobian here to introduce you to the next automatic feeding system and transmission device design is like.
Automatic feeding system and conveyor design:
Hengrong automatic feeding system, according to manufacturers introduced automatic feeding system device works, vertical machining center opened the protective door, tray switch positioning, and then put the fixture filled with the workpiece processing area processing. So when the machine was machining the first side of the work piece, the automatic feeding device started to attach more blank pieces to the second empty pallet clamp. Once the first side of the blank end is machined, the tray is changed again. Automatic Feeding Unit Unloads the first work piece from the first pallet and transfers it to the "flap workstation" in the automatic equipment guard and finally to the work station from the inside plate and Use this station to turn the work piece over effectively with the unprocessed side up and re-install it to the clamp for clamping.
Automatic Feeding Mechanical Equipment Prior to removing machined parts, a high-speed compressed air nozzle mounted on the base of the auto-feeding clamp is used to blow away any debris left over from the entire fixture as the parts are removed , There may be some chips falling into one or more cavities, affecting the correct placement of the next batch of workpieces. From the rough installation of the first surface processing to the completion of the entire processing of parts until the finished product will be sent to the next area, this period takes about 30min.
The lower part of the automatic feeding system device is provided with a tray input mechanism, the end of the tray input mechanism is connected with a tray automatic lifting mechanism, the upper end of the tray automatic lifting mechanism is connected with the chucking mechanism, and on the tray positioning and empty tray removing mechanism There is an empty tray lifting and stacking mechanism at one end away from the holding mechanism. The use of the device is no longer subject to the limitations of the shape of the material, suitable for a variety of automated assembly line, truly automated, but also improves the feeding accuracy, reducing labor intensity.
From the description of automatic feeding system and conveying device design, we can know that the convenience of automatic feeding system is that these jobs do not need too much manual operation, but like a robot where repeated operation, so this automatic Feeding equipment is also faster in the industrial sector.
